Factory introduction
As a high aluminum ceramic ball wholesale factory, because of our years of focus, so our quality is more reliable, but also because we are a direct factory, the price of inert ceramic balls is also more advantageous, followed by the size of inert ceramic balls, types are complete, welcome friends at home and abroad to visit the factory.
Porcelain ball specifications and types
Normal production specifications:Φ3mm, Φ6mm, Φ8mm, Φ10mm, Φ13mm, Φ16mm, Φ20mm, Φ25mm, Φ30mm, Φ38mm, Φ50mm and other specific size specifications can be customized production
Ceramic ball type: low aluminum inert ceramic ball, medium and high aluminum inert ceramic ball, open hole inert ceramic ball, porous inert ceramic ball, concave and convex inert ceramic ball, grooved inert ceramic ball, refractory inert ceramic ball and so on.
Contact information
E-mail: lizhi@pxball.cn
Wechat ID: pxlizhi
Contact: Li Zhi
Phone: 86-15179935250
Website: https://www.pxlizhil.com/
Why high aluminum inert ceramic ball price is high?
High purity raw material cost: the main component of high aluminum inert ceramic ball is alumina (Al₂O₃), and usually requires a high alumina content, generally more than 85%, or even up to 99%. In order to ensure its high performance, the production needs to use high-purity bauxite and other raw materials, the procurement cost of these high-purity raw materials itself is relatively high.

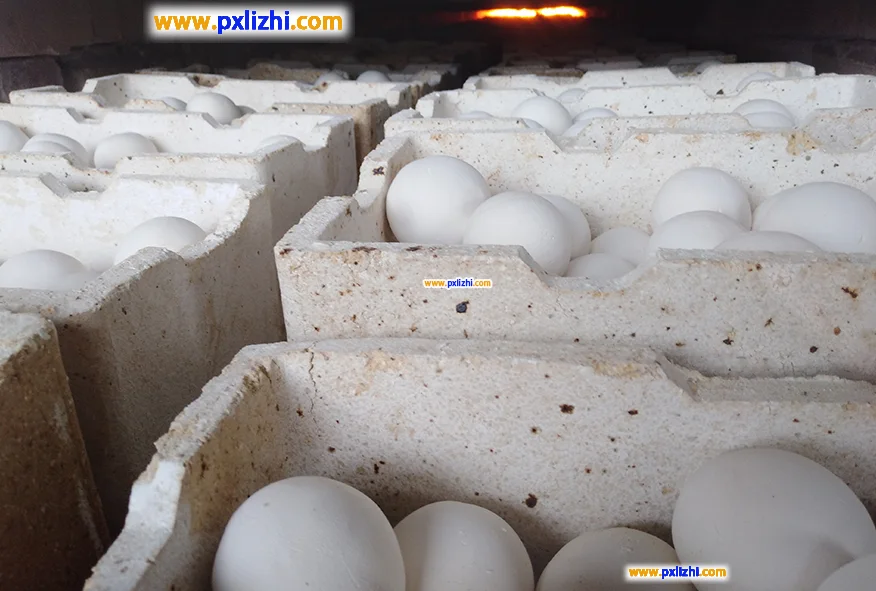

High temperature sintering requirements: the molded ceramic ball needs to be sintered at high temperatures, and the general sintering temperature is between 1300℃ and 1600℃. High temperature sintering not only requires a lot of energy consumption, but also very high requirements for sintering equipment, the need to use high-quality refractory materials and advanced temperature control systems to ensure the stability of the sintering process and product quality, which increases the production cost.
Strict quality testing: In order to ensure the performance and quality of high aluminum inert ceramic balls, strict quality testing is required in the production process, including chemical composition analysis, physical performance testing, dimensional accuracy testing, etc. The cost of testing equipment and technology is also shared in the product price.
Factory reminder
When selecting high aluminum ceramic ball factory to supply high aluminum inert porcelain balls, it is necessary to consider factors such as chemical composition, physical properties, thermal stability, chemical stability, size and shape and cost according to the application scenario to ensure that it meets the technical requirements and achieves the best economic benefits.
Chemical Composition for High Alumina Ceramic Ball
| Al2O3 | Fe2O3 | MgO | SiO2 | Na2O |
| >99% | <0.1% | <0.5% | <0.2% | <0.05% |
Size available & Crush strength
| Size | Crush strength | |
| Kg/particle | KN/particle | |
| 1/8 inch (3mm) | >35 | >0.35 |
| 1/4 inch (6mm) | >60 | >0.60 |
| 3/8 inch (10mm) | >85 | >0.85 |
| 1/2 inch (13mm) | >185 | >1.85 |
| 3/4 inch (19mm) | >487 | >4.87 |
| 1 inch (25mm) | >850 | >8.5 |
| 1-1/2 inch (38mm) | >1200 | >12 |
| 2 inch (50mm) | >5600 | >56 |
