Inert Ceramic Ball Sizes Chart
The following is the size chart of inert ceramic ball and the allowable tolerance picture of inert ceramic ball size, plus the physical property chart and the chemical chart, I believe you have a more detailed understanding of inert ceramics. Of course, if you have any questions related to inert ceramic ball, you are welcome to send an email or add our wechat signal, we will communicate together. At the same time, if you plan to purchase inert ceramic balls in the future, you can also add us, we are specialized in the production of inert ceramic balls factory, quality and price have advantages, but also can provide inert ceramic ball samples.

Contact: Li Zhi
E-mail: lizhi@pxball.cn
Wechat ID :pxlizhi
Detailed size &Crush strength

Size	Crush strength
	Kg/particle	KN/particle
1/8”(3mm)	>35	>0.35
1/4”(6mm)	>60	>0.60
3/8”(10mm)	>85	>0.85
1/2”(13mm)	>185	>1.85
3/4”(19mm)	>487	>4.87
1”(25mm)	>850	>8.5
1-1/2”(38mm)	>1200	>12
2”(50mm)	>5600	>56

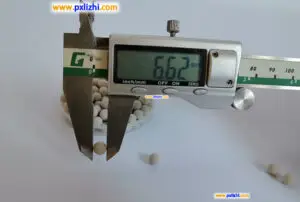

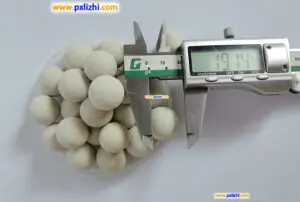

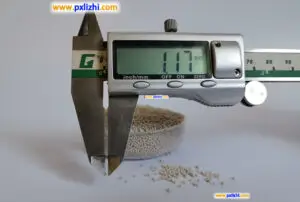

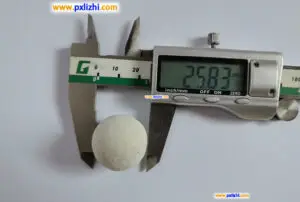

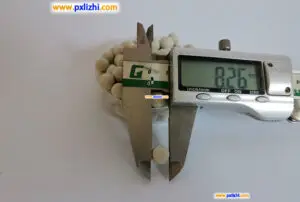

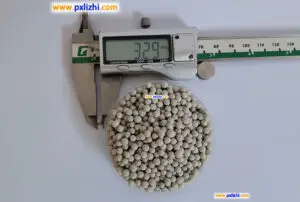

Size tolerance:

Diameter Ф mm	3	6	8	10	13	16	20	25	30	38	50
Size tolerance	±1.0mm				±1.5mm				±2.0mm

Physical properties:

Item	Value
Water absorption (%)	<0.5
Bulk density (g/cm3)	1.35-1.9
Specific gravity (g/cm3)	2.3-2.4
Free volume (%)	40
Operation temp.(max) (ºC)	1100-1700
Moh’s hardness (scale)	>6.5
Acid resistance (%)	>99.6
Alkali resistance (%)	>85

Physical properties

Item	Value
Water absorption (%)	<1
Packing density (g/cm3)	1.9-2.2
Specific gravity (g/cm3)	>3.6
Operation temp.(max) (℃)	1650
Apparent porosity (%)	<1
Moh’s   hardness (scale)	>9
Acid   resistance (%)	>99.6
Alkali   resistance (%)	>85

Note: This is a professional inert ceramic ball website and manufacturers, there are a lot of inert ceramic ball size chart, strength, temperature resistance and other related articles, you can consult more.
